How to use scikit image thresholding methods in Python
Images are just collections of numbers, also known as pixels. These numbers range from 0 to 255, where 0 represents a dark pixel and 255 represents a very bright pixel.

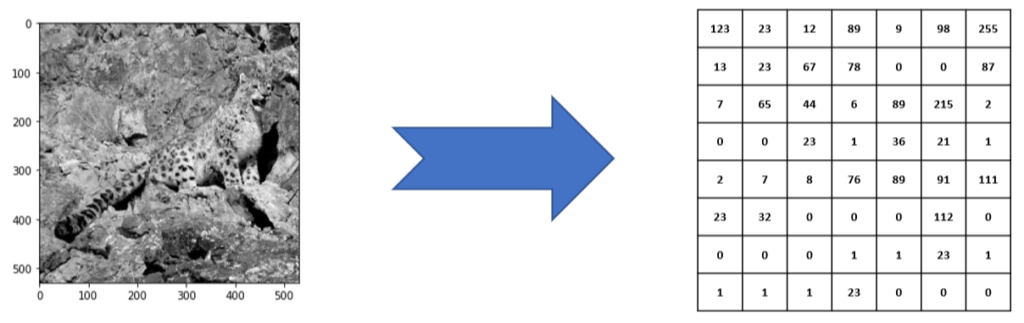

These numbers are represented in the form of a matrix or table, where an intersection of rows and columns denote a unique pixel in the image. This is done for a grey image below:

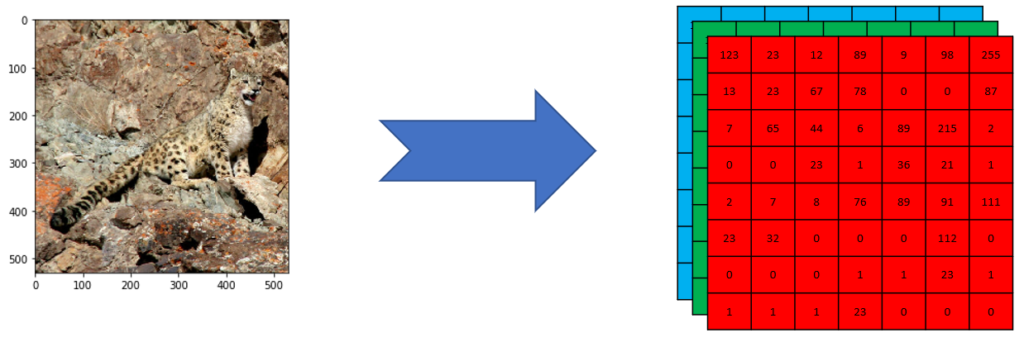

Color images are a superimposition of 3 layers, matrices, or tables that represent a red channel matrix, a green channel matrix, and a blue channel matrix. These 3 channels are commonly referred to as RGB coding of an image. This is shown below:
However, RGB is not the only color image encoding mechanism. There are other image color spaces such as YCbCr and CMYK.
In this post, the RGB color space would be used.
Thresholding
Thresholding is a simple image preprocessing or filtering method that replaces: each pixel value in the image matrix with:
0(representing dark) if the existing pixel is less than the constant valueK255(representing bright) if the existing pixel value is more than the constant valueK
This
Kconstant is known as the threshold value in the thresholding operation.
Since the thresholded image only contains two pixel values (0 and 255), the result of a thresholding operation is a binary image. Below is the thresholded image of the leopard image from earlier:
Below is the code snippet that will allow us to obtain the above binary image:
# Import the skimage threshold_otsu packagefrom skimage.filters import threshold_otsu# get the global optimal threshold for the leopard imageglobalthreshold = threshold_otsu(leopardGrayImg)# apply the threshold to the gray image to obtain a binary imageleopardBinaryImg =leopardGrayImg > globalthreshold# finally show the binary imageimshow(leopardBinaryImg)
The complete jupyter notebook is available in the following repo:
